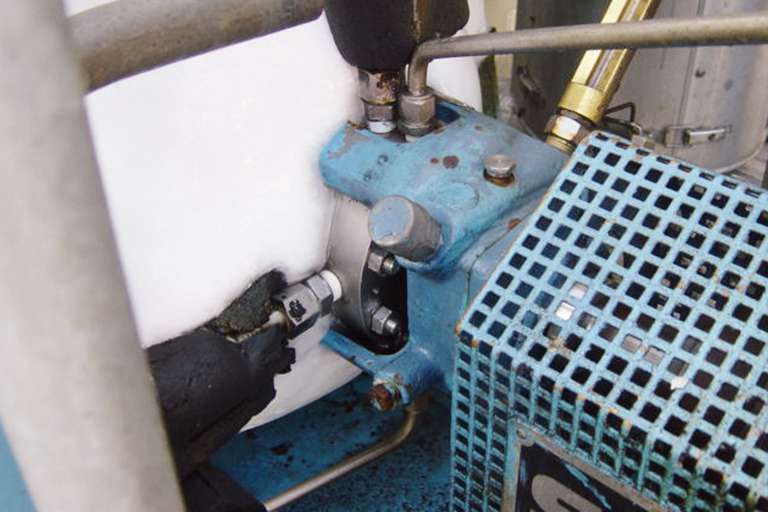

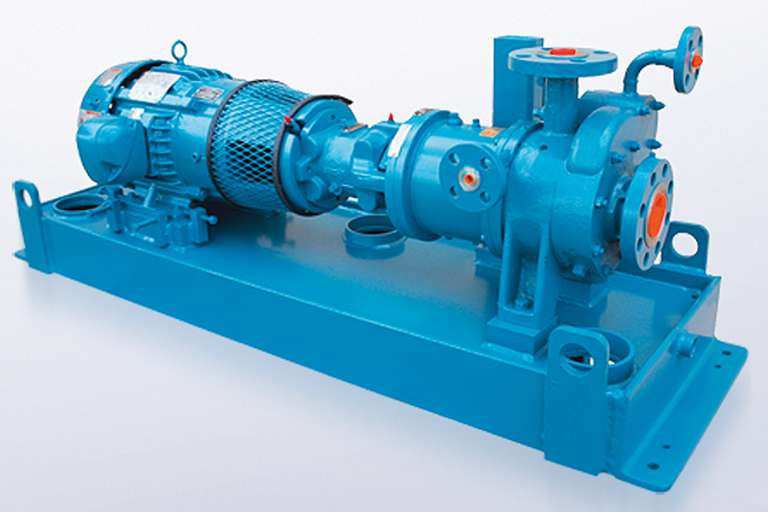

A chemicals company in the Middle East uses the refrigerant R134A-Freon in the production of toluene diisocyanate (TDI). Shortly after the refrigeration plant is commissioned, a magnetic coupling pump fails. Quick help was called for, EagleBurgmann delivered the O-ring seal H75VN with DiamondFace.

Operating conditions: d₁ = 90 mm (3.543”), p₁ = 12.4 barg (179.8 PSIG), t = 45 °C (113 °F), v_g = 6.5 m/s (21.3 ft/s)

Read on for the entire case study

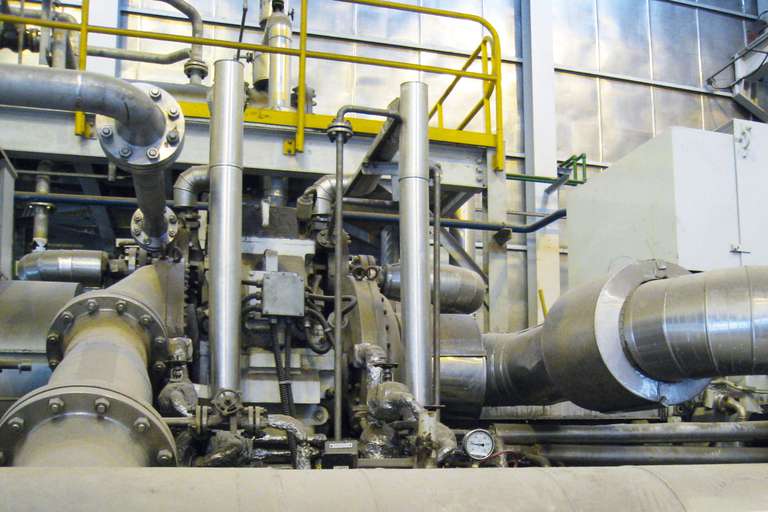

Japan

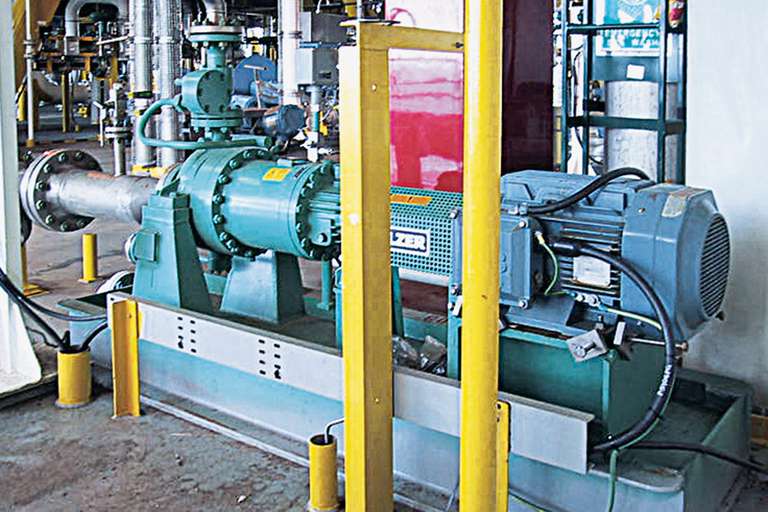

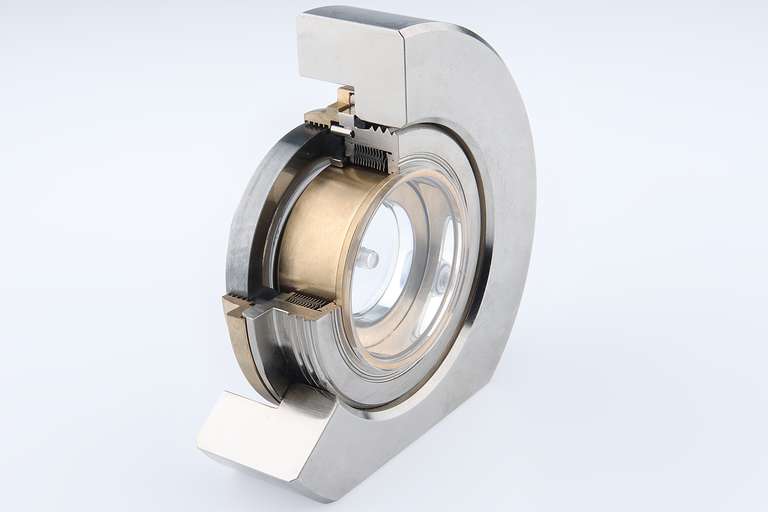

In a chemical plant in Japan, a pump is used to transport molten sulfur. Crystallized sulfur in the area of the shaft seal led to contamination and enormous maintenance costs. Since retrofitting to the EagleBurgmann SulfurAce mechanical seal with an integrated QS300 quench seal, the pump offers optimal availability. The working environment is clean and employees are secure from hazardous substances.

Read on for the entire case study...

Brazil

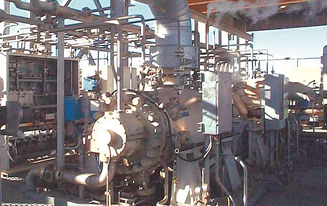

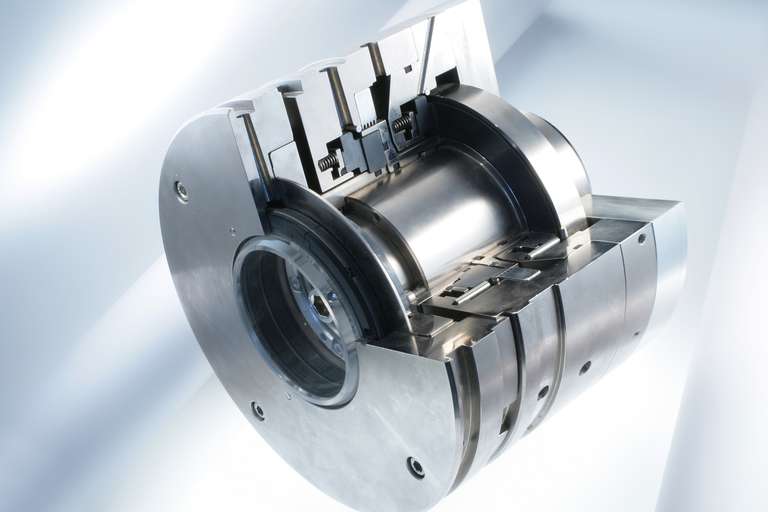

Application-specific adaption of the compressor seal PDGS in tandem arrangement with intermediate labyrinth for multiple main and reserve compressors in ultra-high-pressure CO₂-gas reinjection. Operating pressure: 428 bar(g) (6,206 PSIG). Medium: supercritical carbon dioxide.

United States

Sulzer ethane pumps which are applied in the pipeline of Enterprise Products Operating LP in Mont Belvieu, Texas, USA (picture above) have been sealed successfully by EagleBurgmann DF-DGS6/98-ZT1-U seals since July 2011. The DiamondFace bonded gas seals provide much longer operational life with very low leakage compared to the originally used liquid-lubricated seals.

Operating conditions: p = 40.7 … 50.3 barg (590 … 725 PSIG), t = -12.8 °C … +21.1 °C (+9 °F … +70 °F), n = 3,570 min^-1.

United States

EagleBurgmann DF-DGS6/98-ZT3-U seals are installed in Sulzer Pumps of a fractionation plant in Mont Belvieu, USA, which process mixes NGL streams into purity NGL products like ethane, propane etc.

Operating conditions: p = 44,1 ... 49,6 barg (640 … 720 PSIG), t = 18 °C ... 24 °C (64.4 °F ... 75.2 °F), n = 3,560 min^-1

United States

A number of EagleBurgmann DGS6/49-TA1-U seals with DiamondFace bonding are applied in Schlumberger pumps in an US based ethane fractionation plant.

Operating conditions: p = 62.1 barg (900 PSIG), t = -6.7 °C … +150 °C (+19.9 °F … +302 °F), n = 3,550 min^-1

United States

ITT Industries-Goulds pumps of an ethylene expansion plant in Bayport, Texas, USA are equipped with EagleBurgmann DF-DGS6/108-ZT2-U seals.

Operating conditions: p = 24.9 barg (374.9 PSIG), t = -24.3 °C … +10 °C (-11.7 °F … +50 °F), n = 3,600 min^-1

Netherlands

The drinking water pump station in the Dutch town of Manderveen deploys vertical type CFU centrifugal pumps from Johnson Pumps. They have been reliably delivering over 3.6 million cubic meters of drinking water in continuous operation since 2013. The pumps are sealed with EagleBurgmann M7N mechanical seals with drinking water approved materials. Further operating data: Temperature: t = 15 °C (59 °F), pressure: p = 6 barg (87 PSIG), rotational speed: n = 1,450 min^-1.

Germany

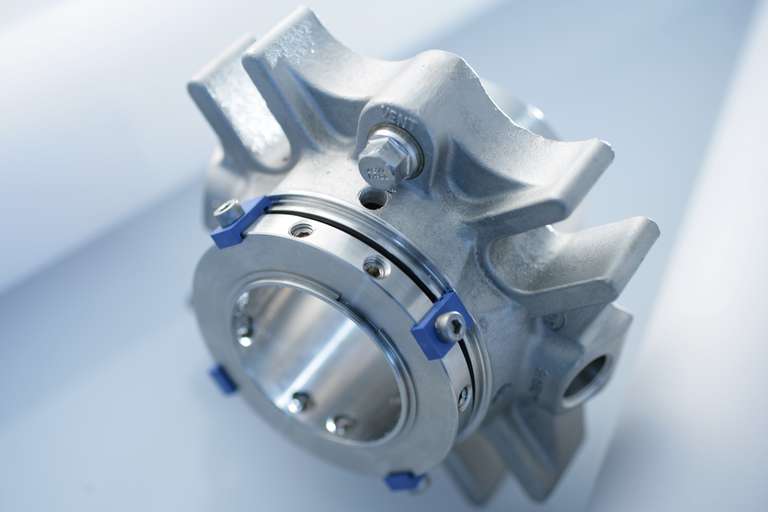

At the Wahnbach dam approx. 25 km southeast from the German city of Cologne, a pumping station delivers untreated water for the drinking water supply of approx. 800,000 inhabitants in the Bonn, Rhein-Sieg, Ahr region to the nearby treatment plant. The water is extracted in various depths from the approx. 50 meter deep reservoir with a pumping capacity of 1,600 ... 3,200 m³/h. Installed here are Ritz pumps which are sealed with EagleBurgmann Cartex-SN cartridge single seals.

Operating conditions: Pressure: p = 11 bar (160 PSI), rotational speed: n = 1,400 min^-1.

Montenegro

An extensive major project for water procurement and supply of the South European country of Montenegro was realized by Xylem Austria, Lowara Vogel. The untreated water is first delivered from the Bolje Sestre water extraction station by four vertical Vogel volute casing pumps to the treatment plant and then on to the Reljici pumping station (photo) located 30 km away. Here the drinking water is pumped by six Vogel multistage pumps to the high-level tank located 6 km away. From there it supplies the northern coastal area (73 km towards Croatia) as well as the southern coastal area (34 km towards Albania). All pumps are equipped with EagleBurgmann types M74 and H74 mechanical seals.

Denmark

Grundfos BioBooster A/S develops and distributes a new generation of compact, decentralized and modular sewage treatment plants, e.g. for water treatment of hospitals (shown here the system of the hospital at Herlev, Denmark), among others. These plants run maintenance-free in continuous operation. Their central components are new types of BioBooster filter units, each of which contain three EagleBurgmann MG1 shafts seals. They effectively prevent contaminated water from leaking into clean water.

Netherlands

SPX-Johnson type CFB 200-400 pumps for the recirculation of separated water are installed in a membrane ultrafiltration plant of the Dutch Water Treatment Company. The medium is very aggressive, has a solids content of 50 mg/l and exhibits dissolved solids of up to 3,800 mg/l. The mix also includes toxic hydrogen sulphide (H2S) which requires reliable leakage detection. The pumps are sealed with EagleBurgmann Cartex-DN double seals. The seals are supplied by means of the EagleBurgmann TS1016 system as per API Plan 53.

Singapore

With a daily production amount of 318,500 m³ of drinking water, the Tuaspring Desalination Plant is the largest seawater desalination plant in Southeast Asia. It went into production in 2014 as the second Singapore plant and is operated by Hyflux. Several Sulzer type AFP submersible pumps with 90 mm (3.54") shaft diameter are installed in the seawater removal. They are sealed with an EagleBurgmann MG1 in a special face material combination.

Operating conditions: pH 7 … 9, temperature: t = +26 °C … +36 °C (+79 °F … +97 °F), rotational speed: n = 1,480 min^-1.

Australia

In Tungun, a suburb of Gold Coast in Queensland, Australia, a seawater desalination plant in continuous standby operation ensures that the drinking water supply of the surrounding cities is maintained. Nine ERU pumps from Nijhius are deployed in the recirculation of filtered seawater. The shafts of the pumps are sealed with EagleBurgmann SHV1 mechanical seals. They have been operating faultlessly since 2008 without flushing.

Operating conditions: Temperature: t … 28 °C (82 °F), pressure: p = 65 bar (943 PSI), rotational speed: n = 1,500 min^-1.

Algeria

The Spanish company Abengoa operates a reverse osmosis plant as DBOOT project (Design, Build, Own, Operate and Transfer) in Skikda in Algeria. 100,000 m³ of drinking water is procured daily from the Mediterranean Sea. The shafts of the Sulzer inlet pumps (type ZE-400) are sealed with EagleBurgmann H75. Due to the high proportion of sand, EagleBurgmann cyclone separators ZY203 (API Plan 11) are installed to protect the seal.

Pressure: p = 6 bar (87 PSI).

Spain

The seawater desalination plant at La Caleta on Tenerife, Spain, produces 10,000 m³ of drinking water each day, thus covering roughly 40 % of the requirement of the surrounding communities. The plant operated by Ayuntamiento de Adeje was built completely underground for ecological reasons. All five Sulzer ZF-200 high pressure booster pumps are sealed with EagleBurgmann type SHV mechanical seals.

Operating conditions: Pressure in the seal chamber: p = 55 bar (798 PSI), rotational speed: n = 1,679 min^-1.

Saudi Arabia

Fapmo centrifugal booster pumps (type 600700H) deliver water from the Red Sea to the reverse osmosis in Yanbu/Marafiq, Saudi Arabia. The complex consists of a 690 MW power station and two desalination plants with a daily drinking water capacity of 60,000 m³. EagleBurgmann Cartex-QN cartridge seals, supplied in accordance with API Plan 32, reliably seal the pumps.

Shaft diameter: 158 mm (6,22"), temperature: t = 20 °C, 44 °C, 80 °C (68 °F, 111 °F, 176 °F), seal chamber pressure: p = 0.8 barg (11.6 PSIG).

Oman

A multistage type MNRO6 high pressure pump of Fapmo, France, was delivered for the reverse osmosis process for the expansion of the seawater desalination plant Sur in Sharqiyah, Oman. It is sealed with an EagleBurgmann SHV2 mechanical seal.

Operating conditions: Temperature: t = +22 °C … +50 °C (+72 °F … +122 °F), pressure: p = 71 bar (1.030 PSI), rotational speed: n = 3,150 min^-1.

United Arab Emirates

The desalination plant Al-Zawrah in the Ajman emirate was planned and built by the Spanish Cadagua. It has a daily drinking water production of approx. 45,600 m³. Seven KSB-RPH pumps are installed in the reverse osmosis plant. They are sealed with EagleBurgmann SHV1 mechanical seals.

Temperature: t = +18 °C … +35 °C (+64 °F … +95 °F), pressure: p = 63 bar (914 PSI), rotational speed: n = 2,770 min^-1.

Germany

Multistage Hilge sterile pumps of the Contra series are also installed for the distribution and storage of various qualities of pharmaceutical waters. They are CIP and SIP capable and EHEDG certified; parts with product contact are executed in the Hygienic Design. Successfully sealed with EagleBurgmann type SHJ mechanical seals.

Typical operating conditions: Temperature: t = +20 °C … +90 °C (+68 °F … +194 °F), pressure: p = 2 … 9 bar (29 … 131 PSI), steam sterilization at +121 °C … +135 °C (+250 °F … +275 °F).
